light weight gauge steel frame pre fabricated house villa

Products Description

--------------------------------------- CONTAINER HOUSE --------------------------------------

High Quality Removable 2022 Modular Prefab Container House Office

High Quality, C. E Standard Modern Prefabricated Steel Structure House

High Quality, C. E Standard Modern Prefabricated Steel Structure House

Container House is a construction product which is mobile,
prefabricated and reusable.
The house adopts standardized design,factory production,
and takes cabinet as the elemental unit.
Container house is not only fit for individual usage,
but also for spacious room application formed by various horizontal and vertical direction combination.
Container house structure
uses standardized structural elements that are welded by profile steel or cold-formed thin-wall steel.
Combined container houses is connected and fastened by high strength screws,
so that house structure is simple,
easy to install.
Container house is widely used for real estate development exhibition hall,
product sale showroom,
temporary reception center,
commercial temporary office,store and so on.

----------------------------------- Product introduction ----------------------------------
The size of our product is 2438*6058*2896 basically 20ft.To make it easy for any situation,
our products can build to many storeys and can be extension.Because it's easy to extension So it's easily became dormitory, office,
coffee shop and your luxury home.

Bottom	Frame structure	2.5mm thick profiled steel
	Floor	MGO board,waterproof, fireproof (Option Fiber cement)
	Floor finshes	1.8mm PVC flooring (extra cost)
Roof	Frame structure	2.3mm thick profiled steel
	Outside cover	0.426mm steel sheet
	Insulation	glass wool
	Ceiling	0.25mm steel sheet bottom tile
Color	Customizable
Use	Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House,Shop,Toilet,Villa,Warehouse,Workshop,Plant
Coener post	4.5 cold rolled steel profile, galvanization, welded (160mm*160mm)
Wall panel	Sandwich panel with 50mm EPS or rock wool
Window	Aluminum alloy windows with dimension 925mm*1200mm (3mm single glass)
Door	Steel door with dimension 925mm*2035mm
Electricity	Light, Switch, Socket, distribution box, breaker and wire
Painting	Automatic galvanizing and baking paint spray molding
Exterior size	5950(L)3000(W)2800(H)

--------------------------------------- Product Detail --------------------------------------
Product detail show:
1.House size:6*3*2.7M (20ftcontainer))
2.Material of wall/roof : 50 mm EPS or Rock wool sandwich panel
3.Materila of floor: 15mm Mgo board
4.Size of column:100*100*2.5mm steel tube
5.We can do customized size, higher is possible
6.Electric and other fittings( toliet/bath room/kitchen) can be placed in for additional options.
High Quality, C. E Standard Modern Prefabricated Steel Structure House

--------------------------------------- Product advantage ------------------------------------

Simple installation,three people can complete the installation in an hour

Our containers have different layout designs and can be customized according to requirements

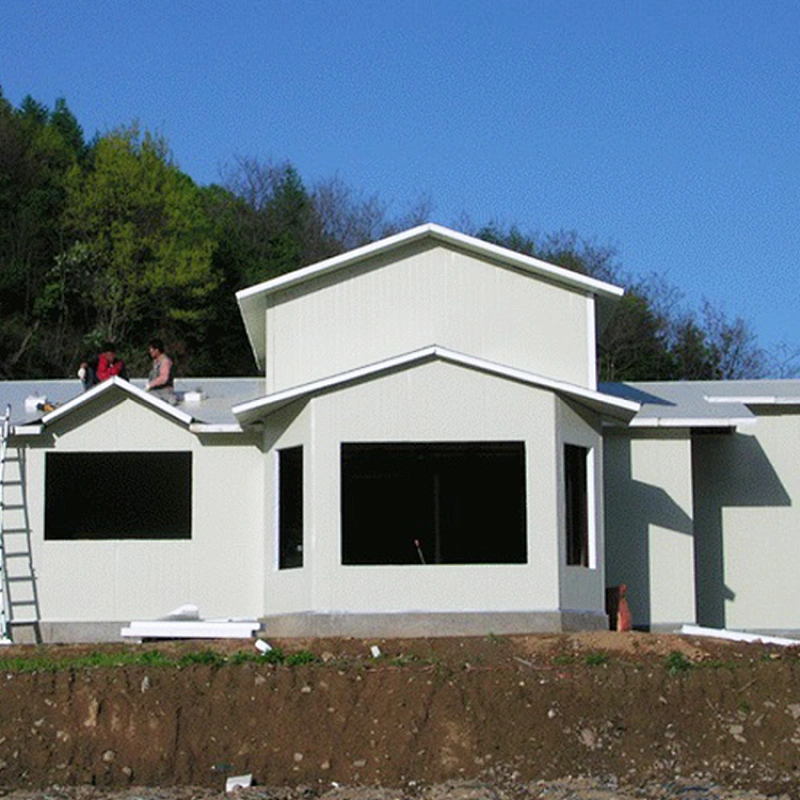

--------------------------------------- Overseas Case --------------------------------------
High Quality, C. E Standard Modern Prefabricated Steel Structure House

FAQ

Do you provide on-site installation service?
a. General projects, we can provide Installation guide service based on customers' request. b. Installation supervision charge: 150USD/day,
customer should responsible for the travel fee, accommodation, translation fee, and ensure staff's health and safety.

How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide a high-quality design solution. b. quality of the
raw material: choose the qualified raw material c. quality of the production: precise manufacturing technique, experienced
workers, strict quality inspection.

If there is a clear service life of your products? If have, how long?

Under conventional climate and environment, the service life of container house steel frame is 20 years
What's your delivery time?
Normally, delivery time is 30 days after receive deposit. Large order delivery time should be arranged separately.
